Standards
Product is supplied to applicable ASTM and AWWA standards (C901 / C906). Gulf Poly Pipe LLC is an independent supplier; the quoted product and specific standard conformance are confirmed for each quotation.
Houston-based independent supplier
PE4710 HDPE pipe for your project.
Start with your size, DR and quantity. Gulf Poly Pipe supplies pressure pipe with product details, documentation and delivery terms confirmed in your quotation.
- PE4710
- ¾″–24″ IPS
- DR 7–17
- Quoted per project
Material overview
Pipe selection starts with the specification
Review the required material designation, pressure class, joining method and application before selecting pipe. Send the referenced specification with your RFQ so the quoted product and documentation can be checked against it.
- Confirm the joining method and compatible fittings
- Identify the service fluid and operating conditions
- Include required material testing and documentation
- Confirm stick or coil length for handling and installation
- AWWA C906
- AWWA C901
- ASTM D3035 / F714
- IPS sizing
Supply format
Straight lengths or coils
Smaller diameters can ship coiled, which cuts the number of joints on long runs. Larger diameters ship as straight lengths. The format available for your size is identified on the quotation.

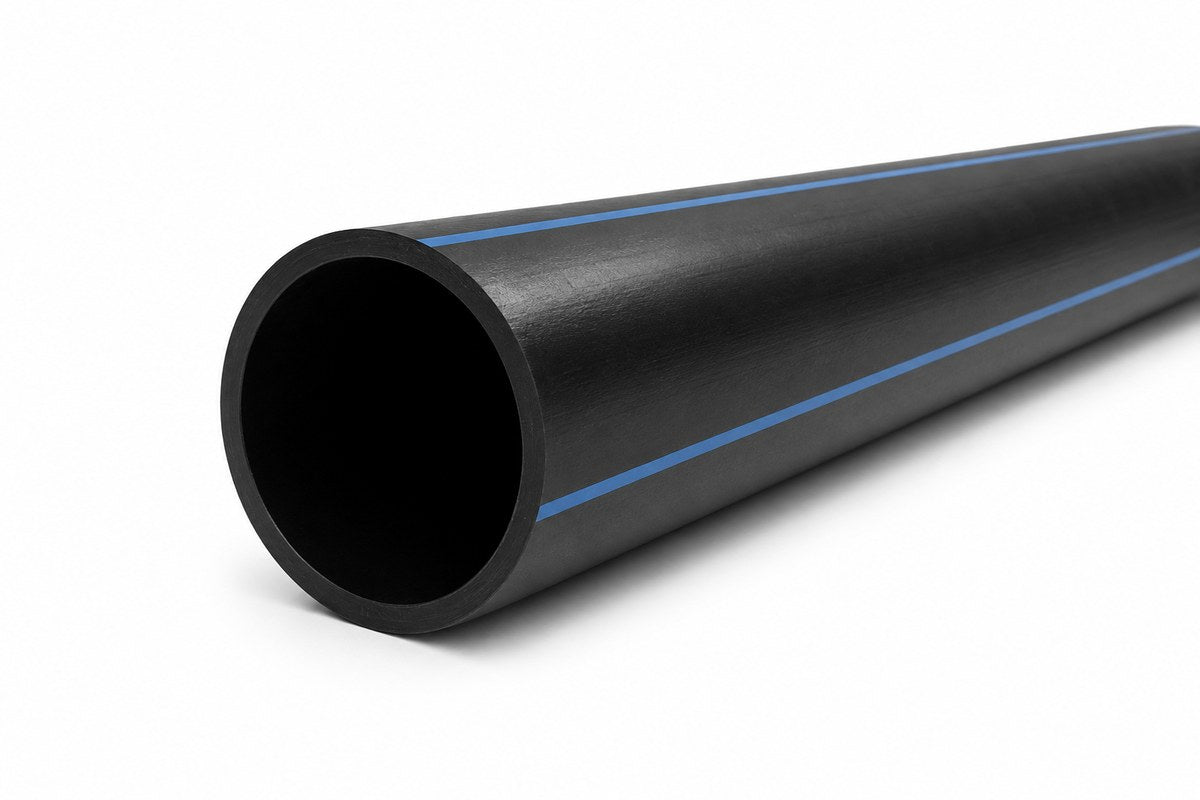

Straight lengths
Standard for larger diameters and for runs fused on site. Length per stick is confirmed with the quotation.
Coils
Available in smaller diameters. Fewer joints over long distances, and easier handling for service lines and irrigation runs.
Reference tool
Check pipe dimensions
Select an IPS size and DR to view reference dimensions. This tool does not confirm availability or replace the project specification.
—OD (in)
—Wall (in)
—Avg ID (in)
—Weight (lb/ft)
—Pressure (psi)
About — lb per 40 ft. Geometry and weight are typical for PE4710 and for reference only — confirmed at quote. Request pipe pricing
Sizes & pressure
Pressure rating by dimension ratio
HDPE pressure capacity is set by the dimension ratio (DR) — outside diameter ÷ wall thickness. A lower DR means a thicker wall and a higher pressure rating.
Pressure Rating @ 73°F
Water service| DR | Pressure rating @ 73°F (psi) |
|---|---|
| DR 7 | 333 |
| DR 9 | 250 |
| DR 11 | 200 |
| DR 13.5 | 160 |
| DR 17 | 125 |
| DR 21 | 100 |
| DR 26 | 80 |
Pressure ratings at 73°F for water (PR = 2 × HDS ÷ (DR − 1), PE4710). De-rate for temperature and service per project requirements; pressure class is confirmed at quote.
Flow Characteristics
Smooth bore| Parameter | Value |
|---|---|
| Hazen-Williams C | 150 |
| Manning's n | 0.009 |
| Darcy-Weisbach e | 0.000005 ft |
| Absolute roughness | ~1.5 microns |
Reference coefficients only. Hydraulic design values depend on the service conditions and applicable design criteria.
IPS Dimensions — DR 11
Representative · ¾″–24″| Size | OD (in) | Min Wall (in) | Avg ID (in) | Weight (lb/ft) |
|---|---|---|---|---|
| ¾″ | 1.050 | 0.095 | 0.859 | 0.12 |
| 1″ | 1.315 | 0.120 | 1.076 | 0.19 |
| 1¼″ | 1.660 | 0.151 | 1.358 | 0.30 |
| 1½″ | 1.900 | 0.173 | 1.555 | 0.39 |
| 2″ | 2.375 | 0.216 | 1.943 | 0.61 |
| 3″ | 3.500 | 0.318 | 2.864 | 1.32 |
| 4″ | 4.500 | 0.409 | 3.682 | 2.19 |
| 6″ | 6.625 | 0.602 | 5.420 | 4.74 |
| 8″ | 8.625 | 0.784 | 7.057 | 8.04 |
| 10″ | 10.750 | 0.977 | 8.795 | 12.49 |
| 12″ | 12.750 | 1.159 | 10.432 | 17.57 |
| 16″ | 16.000 | 1.455 | 13.091 | 27.66 |
| 18″ | 18.000 | 1.636 | 14.727 | 35.01 |
| 20″ | 20.000 | 1.818 | 16.364 | 43.22 |
| 24″ | 24.000 | 2.182 | 19.636 | 62.24 |
DR 11 is shown as representative. Request the product-specific dimensional sheet for the size and DR in your quotation.
Technical data
Physical properties
Typical PE4710 resin properties with the ASTM test methods used to verify them.
View PE4710 typical physical properties
PE4710 — Typical Physical Properties
Reference values| Property | Value | Test Method |
|---|---|---|
| Density | 0.960 g/cm³ | ASTM D1505 |
| Melt Index (190°C / 2.16 kg) | 0.07 g/10 min | ASTM D1238 |
| High Load Melt Index (190°C / 21.6 kg) | 7–16 g/10 min | ASTM D1238 |
| SCG Resistance (PENT) | > 500 hours | ASTM F1473 |
| Tensile Stress @ Yield | 3,500 psi | ASTM D638 |
| Tensile Stress @ Break | 5,000 psi | ASTM D638 |
| Elongation @ Break | > 500% | ASTM D638 |
| Flexural Modulus (2% secant) | 150,000 psi | ASTM D790 |
| Brittleness Temperature | < −103°F | ASTM D746 |
| Hardness | 62 Shore D | ASTM D2240 |
| Vicat Softening Temperature | 256°F | ASTM D1525 |
| Thermal Expansion Coefficient | 1.0 × 10⁻⁴ in/in/°F | ASTM D696 |
Values are typical for PE4710 material and provided for reference; project-specific certifications and mill documentation are available upon request.
Applications
Common HDPE pipe applications
Water & Municipal
- Municipal water mains and service lines
- Gravity sewer and force-main systems
- Sewer rehabilitation (slip lining)
- Irrigation mains and reclaimed water
- Water-well casing and drop pipe
Industrial, Energy & Mining
- Produced water and brine transfer
- Gas gathering and distribution
- Chemical transfer and process piping
- Slurry, tailings and mine dewatering
- Power plant cooling water supply
Standards & documentation
Specified with confidence
Certifications
Material certifications and documentation are available upon request to support your project submittals.
Documentation
Spec sheets, dimensional data and application guides are available in Resources & Catalogs.
Request a quote
Need HDPE pipe for your project?
Send your sizes, DR / pressure class and quantities. We’ll respond with a clear, confirmed supply quote.
