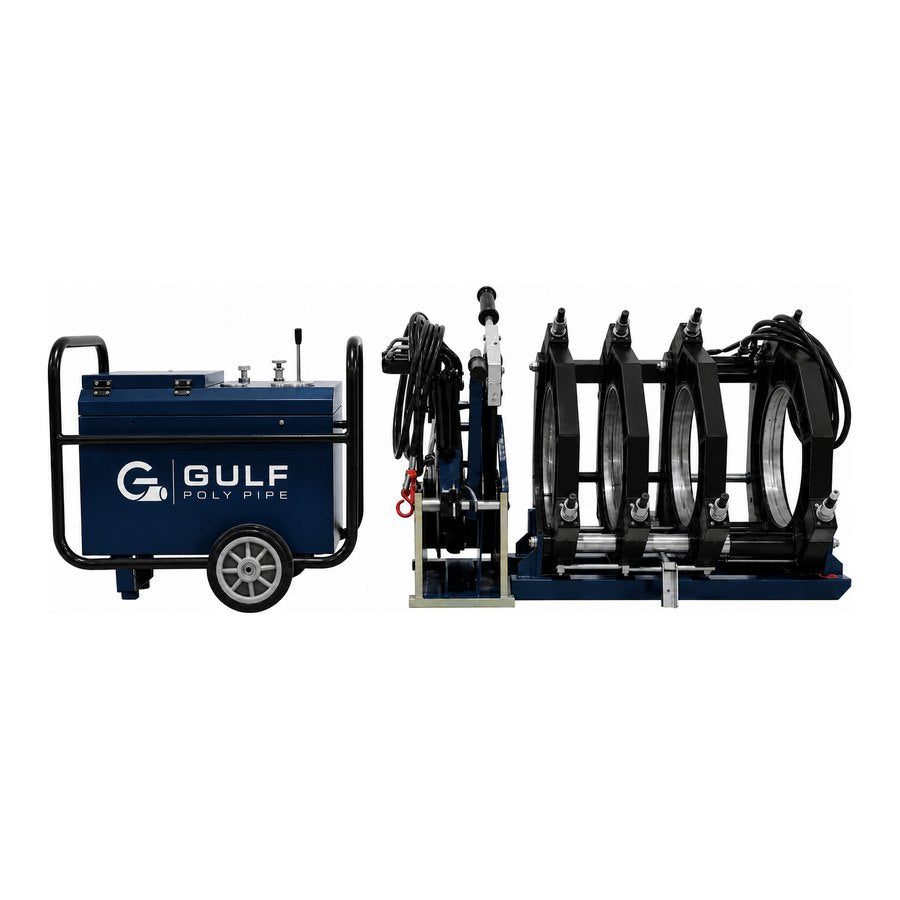

Hydraulic butt-fusion
GPP Titan 208
- Pipe range2″–8″
- Power4.4 kW (5.9 hp)
- Max pressure120 bar (1,740 psi)
- Net weight230 kg (507 lb)
Fusion Equipment
Butt-fusion equipment
Titan hydraulic and Forge manual butt-fusion machines for field and shop work — spanning 1¼″–24″ pipe. Click any machine to see full specs, then request availability.
Field & shop ready
Pick the machine that matches the pipe
Heat-fused joints make HDPE one continuous, leak-free line — and the right machine for the diameter keeps fusion fast and consistent. The Titan hydraulic series covers larger field work; the Forge manual series handles smaller service and shop sizes. Open any machine for the full datasheet.
- Hydraulic and manual options across 1¼″–24″
- Field power (220V 3-phase / 120V)
- Availability and configuration confirmed at quote
Titan series · Hydraulic
Hydraulic butt-fusion — 2″ to 24″
Hydraulic clamping and pressure for larger-diameter field fusion. Click a machine for full specs.
Hydraulic butt-fusion
GPP Titan 312
- Pipe range3″–12″
- Power5.2 kW (7.0 hp)
- Max pressure120 bar (1,740 psi)
- Net weight299 kg (659 lb)
Hydraulic butt-fusion
GPP Titan 818
- Pipe range8″–18″
- Power10.88 kW (14.6 hp)
- Max pressure160 bar (2,321 psi)
- Net weight803 kg (1,771 lb)

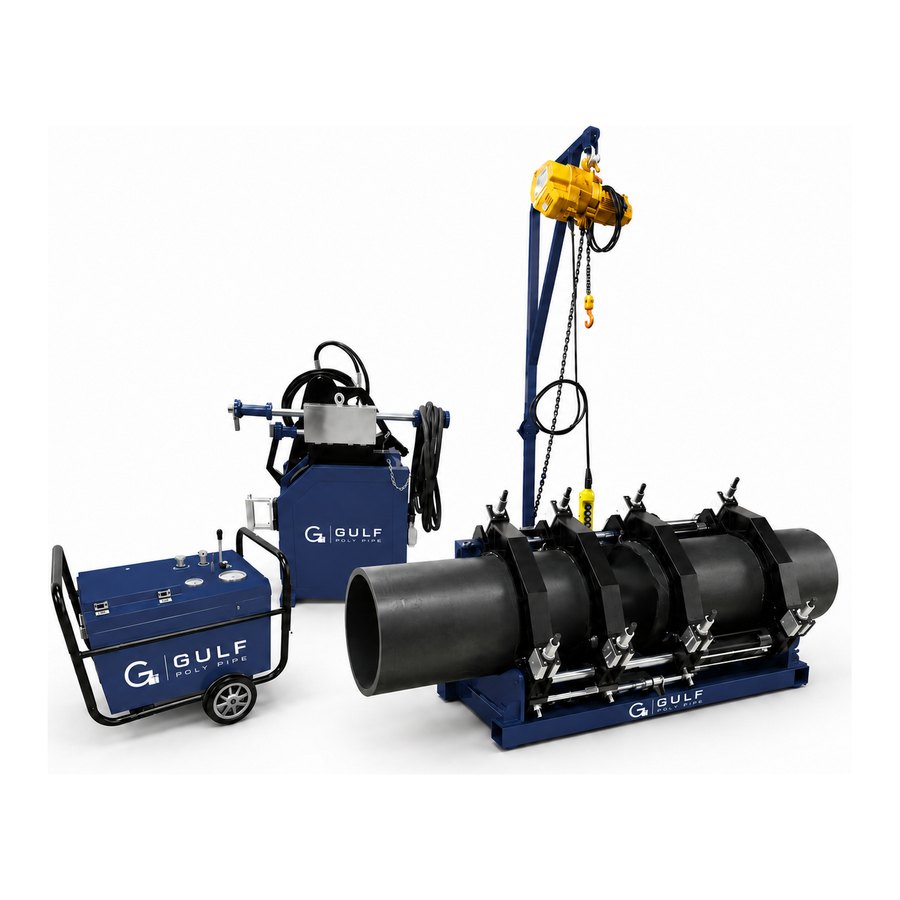

Hydraulic butt-fusion
GPP Titan 1224
- Pipe range12″–24″
- Power14.85 kW (19.9 hp)
- Max pressure160 bar (2,321 psi)
- Net weight1,260 kg (2,778 lb)
Forge series · Manual
Manual butt-fusion — 1¼″ to 8″
Compact, portable machines for service sizes and shop work.

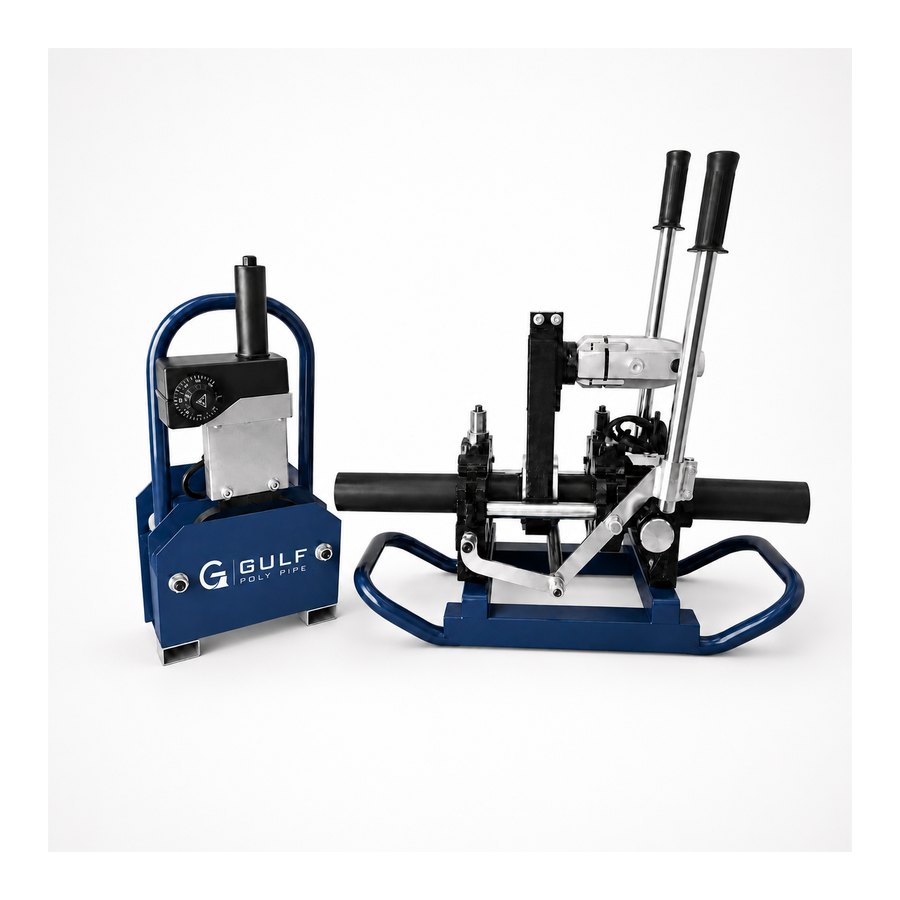

Manual butt-fusion
GPP Forge 14
- Pipe range1¼″–4″
- Power1.4 kW (1.9 hp)
- Net weight40 kg (88 lb)
Manual butt-fusion
GPP Forge 26
- Pipe range2″–6″
- Power1.7 kW (2.3 hp)
- Net weight68 kg (150 lb)

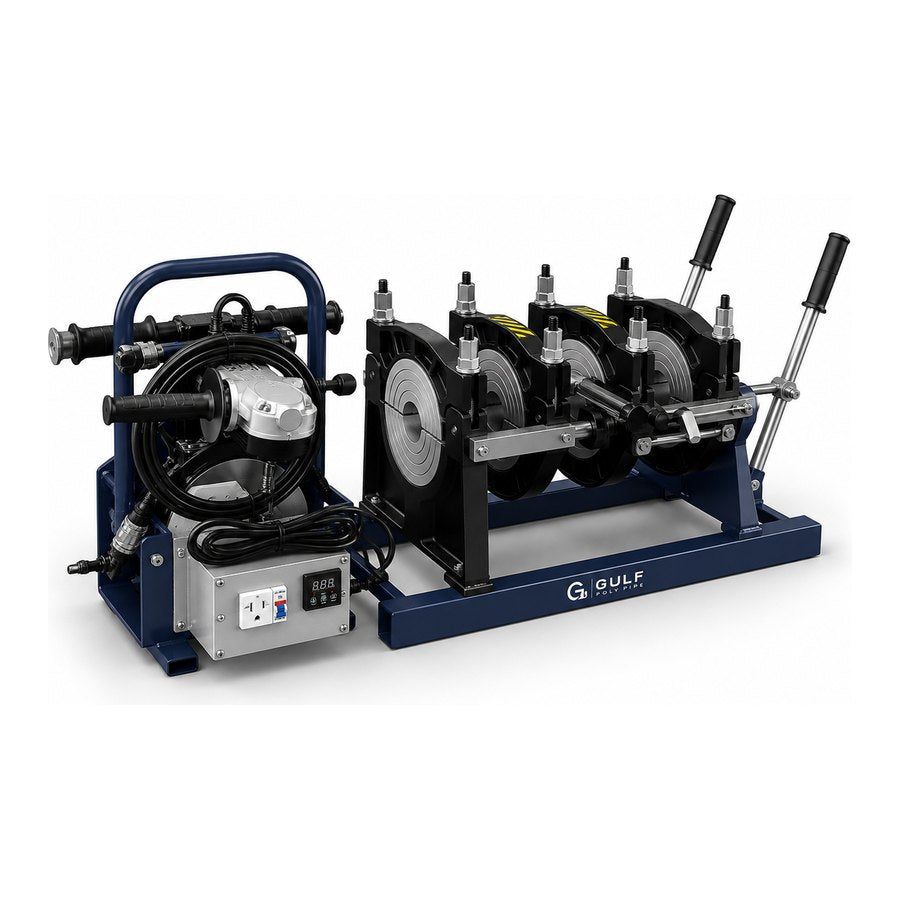

Manual butt-fusion
GPP Forge 28
- Pipe range2″–8″
- Power3.1 kW (4.2 hp)
- Net weight91 kg (201 lb)
At a glance
Compare all machines
Butt-Fusion Machine Range
Click a model for full specs| Model | Pipe range | Type | Voltage | Power | Max pressure | Net weight |
|---|---|---|---|---|---|---|
| GPP Titan 208 | 2″–8″ | Hydraulic | 220V · 60Hz · 3-phase | 4.4 kW (5.9 hp) | 120 bar (1,740 psi) | 230 kg (507 lb) |
| GPP Titan 312 | 3″–12″ | Hydraulic | 220V · 60Hz · 3-phase | 5.2 kW (7.0 hp) | 120 bar (1,740 psi) | 299 kg (659 lb) |
| GPP Titan 818 | 8″–18″ | Hydraulic | 220V · 60Hz · 3-phase | 10.88 kW (14.6 hp) | 160 bar (2,321 psi) | 803 kg (1,771 lb) |
| GPP Titan 1224 | 12″–24″ | Hydraulic | 220V · 60Hz · 3-phase | 14.85 kW (19.9 hp) | 160 bar (2,321 psi) | 1,260 kg (2,778 lb) |
| GPP Forge 14 | 1¼″–4″ | Manual | 120V · 60Hz · 1-phase | 1.4 kW (1.9 hp) | — | 40 kg (88 lb) |
| GPP Forge 26 | 2″–6″ | Manual | 120V · 60Hz · 1-phase | 1.7 kW (2.3 hp) | — | 68 kg (150 lb) |
| GPP Forge 28 | 2″–8″ | Manual | 120V · 60Hz · 1-phase | 3.1 kW (4.2 hp) | — | 91 kg (201 lb) |

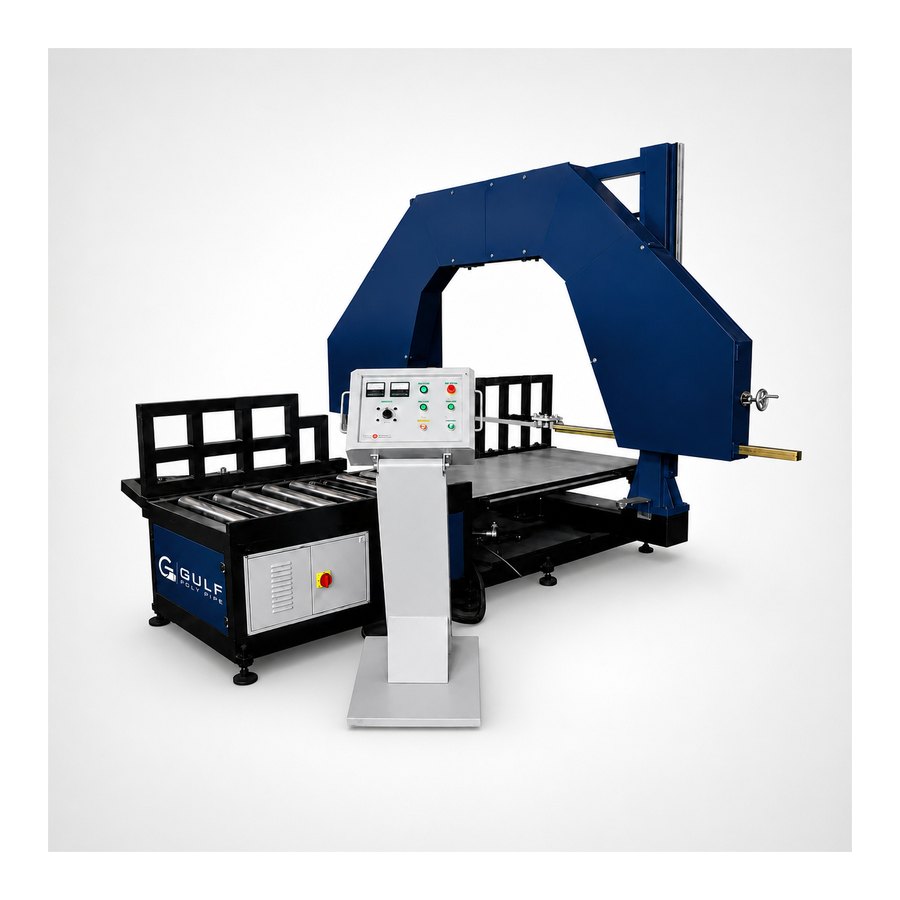

Specifications are typical and provided for reference. Final configuration, voltage, tooling and availability are confirmed at the time of quote. Pipe-cutting and ancillary shop equipment available on request.
Request a quote
Need fusion equipment for a project?
Tell us the pipe sizes and site conditions. We'll confirm the right Titan or Forge machine, configuration and availability.
