TITAN SERIES — HYDRAULIC FIELD FUSION

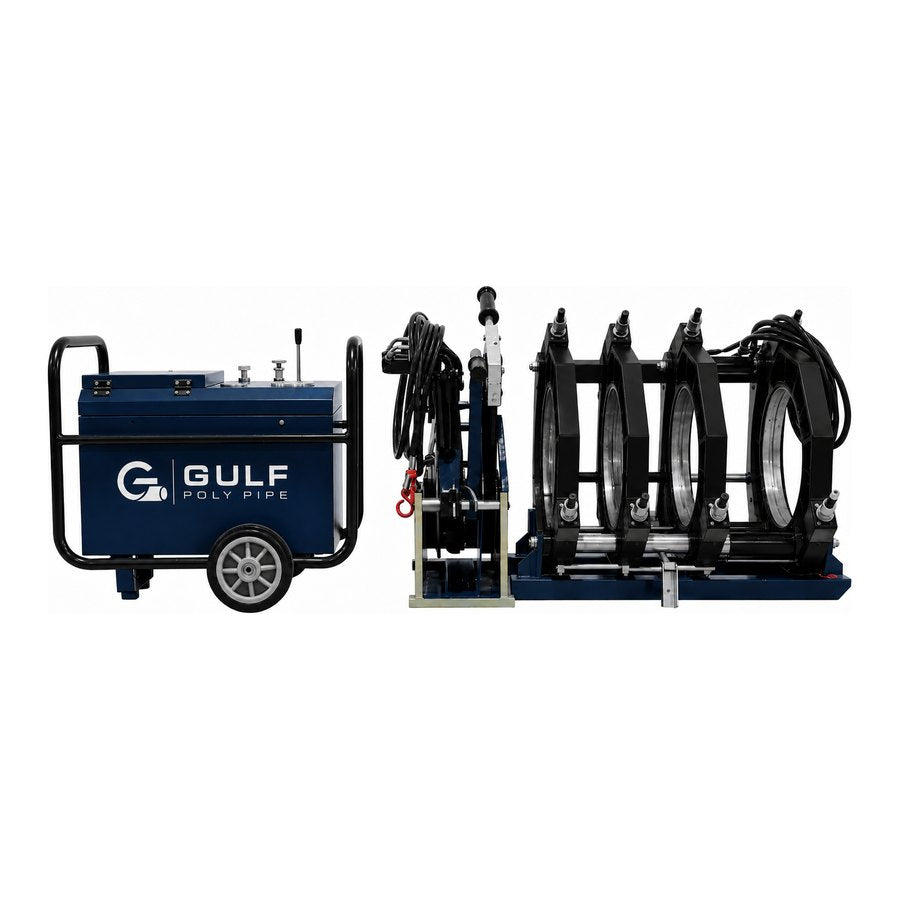

GPP Titan 208
Hydraulic Butt Fusion Machine
- 2″ – 8″ IPS
Self-contained hydraulic butt fusion machine for pressure pipe in water, utility and industrial service from 2″ to 8″. A compact four-clamp body works with an independent hydraulic unit, PTFE-coated heating plate and hydraulic facer to produce repeatable field joints following ASTM F2620 fusion procedures.
Technical specification
- Welding range: 2″ – 8″ plastic pipe
- Range of application: PE, PP and PVDF
- Working voltage: 220V ±10%, 60 Hz, 3-phase
- Total power: 4.4 kW
- Cylinder area: 10.98 cm² · Max pressure: 120 bar
- PTFE-coated heating plate
- Net weight: 230 kg
- Operating environment: -10° to 45°
Standard composition
- Machine body
- Heating plate
- Facer
- Hydraulic unit
- Support stand
Packing & weights
Packing dimensions and shipping weights are confirmed per RFQ.
Quoted by configuration. Clamps, inserts, liners, voltage, heater, facer and accessories are confirmed per RFQ. Specifications subject to supplier confirmation.
