TITAN SERIES — HYDRAULIC FIELD FUSION

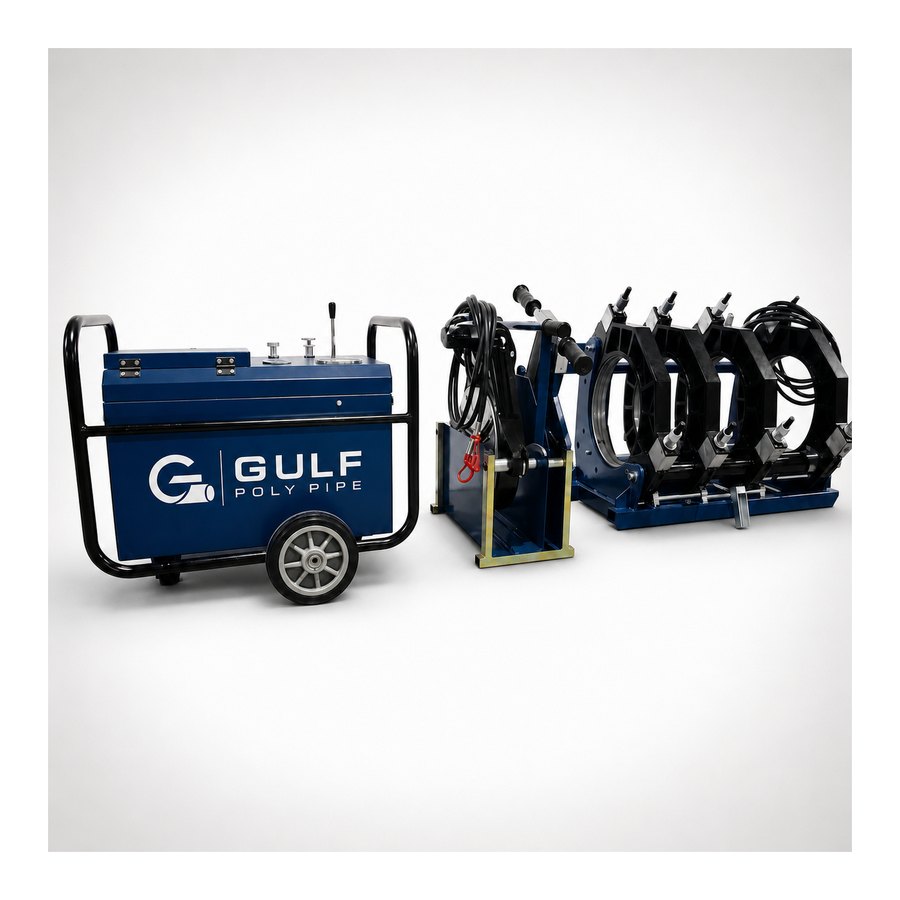

GPP Titan 818
Hydraulic Butt Fusion Machine
- 8″ – 18″ IPS
Hydraulic butt fusion machine for mid-to-large diameter water transfer, municipal and industrial lines from 8″ to 18″. Electronic count-down timers guide heating and cooling phases, and an optional crane with hoist simplifies handling of clamps, facer and heating plate on the jobsite.
Technical specification
- Welding range: 8″ – 18″ plastic pipe (8″ · 10″ · 12″ · 14″ · 16″ · 18″)
- Range of application: PE, PP and PVDF · Max wall thickness: SDR7
- Working voltage: 220V ±10%, 60 Hz, 3-phase
- Total power 10.88 kW — heating plate 5.38 kW, hydraulic unit motor 5.5 kW, crane hoist (optional) 0.8 kW
- Cylinder area: 37.7 cm² · Max pressure: 160 bar
- PTFE-coated heating plate · surface temperature difference ≤ ±7°
- Electronic count-down timer for heating and cooling time
- Operating environment: -10° to 45°
- Machine consists of basic frame, heating plate, facer, hydraulic unit, supports, and crane with hoist (optional)
Standard composition
- Machine body
- Heating plate
- Facer
- Hydraulic unit
- Supports
- Crane / hoist (opt.)
Packing & weights
Packing & weights
Per shipment| Item | Dimension with packing (mm) | N.W (kg) | G.W (kg) | Contents |
|---|---|---|---|---|
| 1 | 1500 × 1150 × 1050 | 463 | 540 | Basic frame; liner 8″/16″ |
| 2 | 1000 × 850 × 950 | 160 | 209 | Hydraulic unit |
| 3 | 1000 × 850 × 1300 | 180 | 238 | Heating plate, facer, support, attachments and fittings |
| 4 | 590 × 330 × 510 | 42 | 50 | Motor hoist, crane |
| Total | 3.823 CBM | 803 | 987 |
Quoted by configuration. Clamps, inserts, liners, voltage, heater, facer and accessories are confirmed per RFQ. Specifications subject to supplier confirmation.

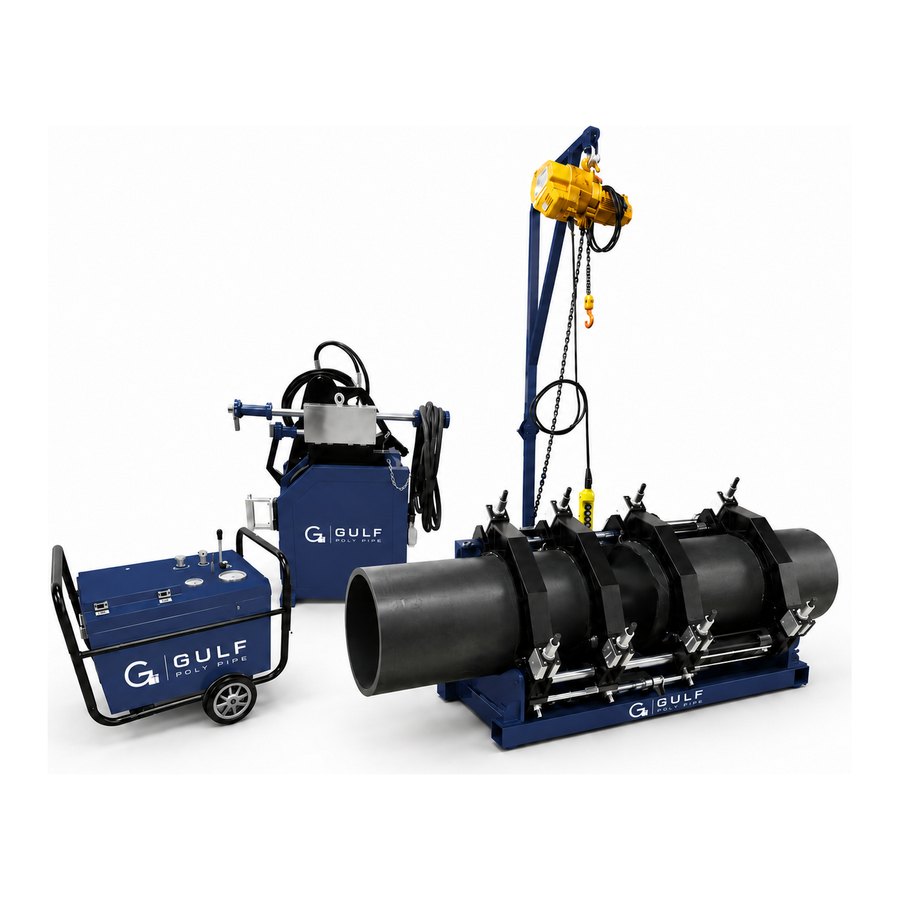

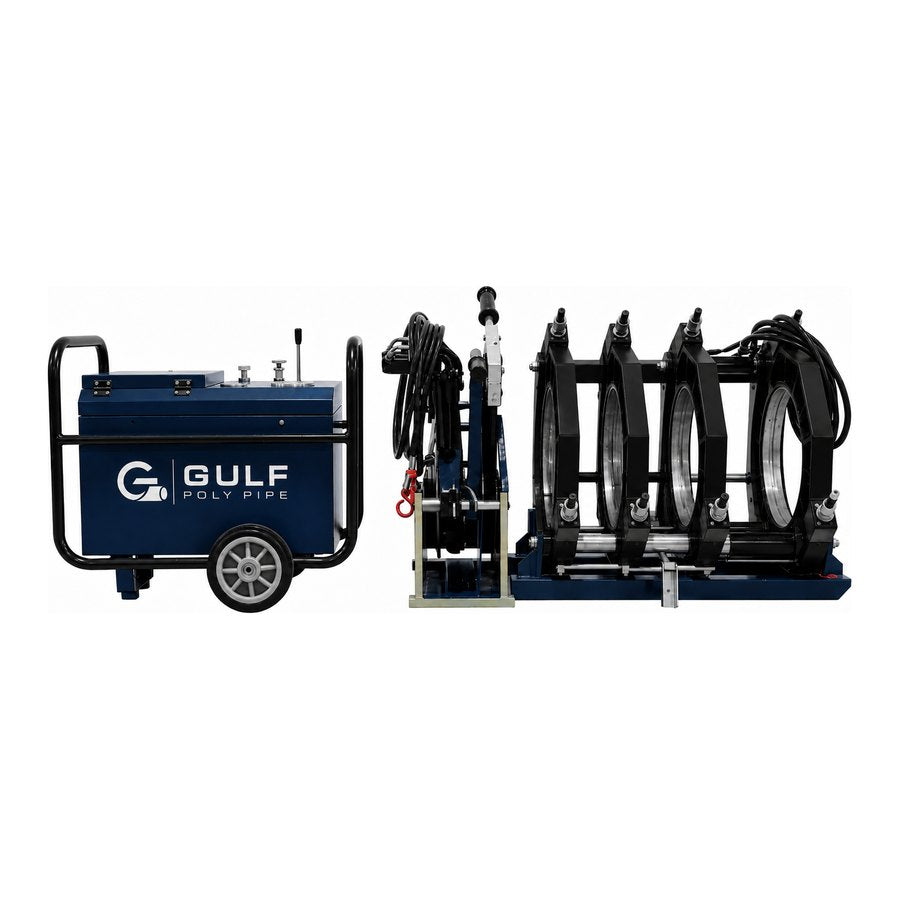

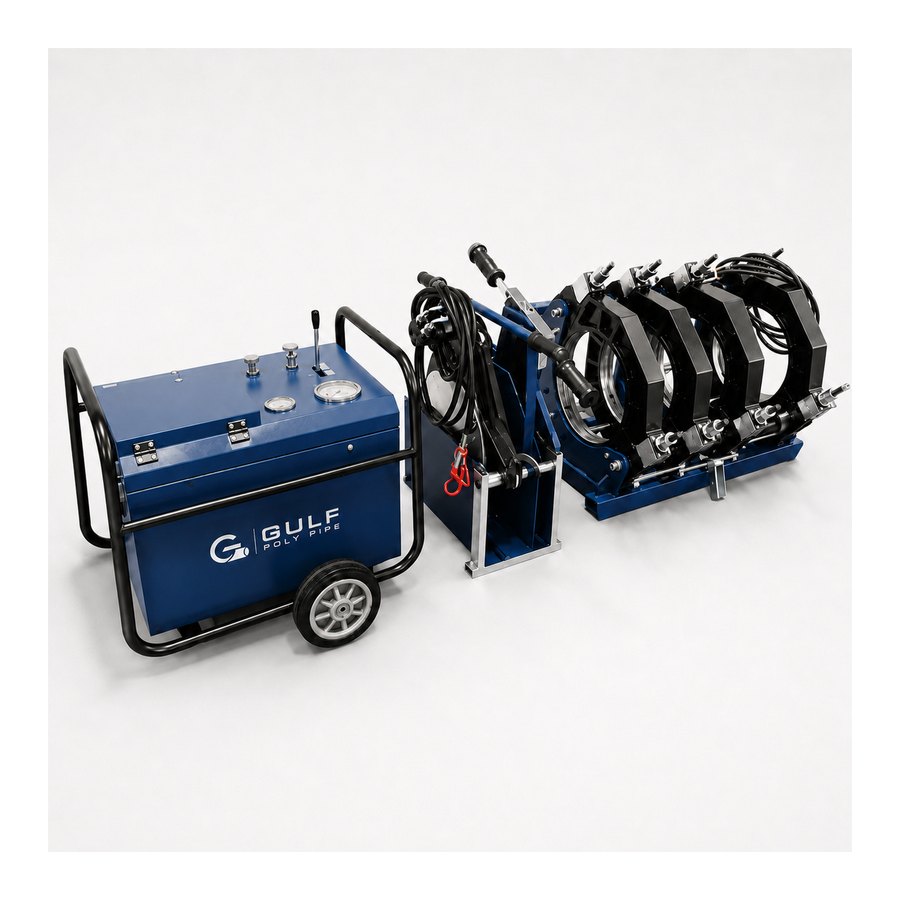

More in this series
