TITAN SERIES — HYDRAULIC FIELD FUSION
GPP Titan 312
Hydraulic Butt Fusion Machine
- 3″ – 12″ IPS
Self-contained hydraulic butt fusion machine for pressure pipe in water, utility, oilfield and industrial service up to 12″ IPS. A four-clamp machine body works with an independent hydraulic unit, PTFE-coated heating plate and hydraulic facer to deliver consistent, repeatable field joints following ASTM F2620 fusion procedures.
Technical specification
- Welding range: 3″ – 12″ plastic pipe (3″ · 4″ · 5″ · 6″ · 8″ · 10″ · 12″)
- Range of application: PE, PP and PVDF · Max wall thickness: SDR7
- Working voltage: 220V ±10%, 60 Hz, 3-phase
- Total power 5.2 kW — heating plate 3.0 kW, hydraulic unit motor 2.2 kW, hydraulic facer (planing tool)
- Cylinder area: 20 cm² · Max pressure: 120 bar
- PTFE-coated heating plate · surface temperature difference ≤ ±5°
- Operating environment: -10° to 45°
- Machine consists of basic frame, heating plate, facer, hydraulic unit and support for facer & heating plate
Standard composition
- Machine body
- Heating plate
- Facer
- Hydraulic unit
- Support stand
Packing & weights
Packing & weights
Per shipment| Item | Dimension with packing (mm) | N.W (kg) | G.W (kg) | Contents |
|---|---|---|---|---|
| 1 | 1050 × 750 × 900 | 154 | 184 | Basic frame; stub device (liner 3″–10″) |
| 2 | 640 × 600 × 750 | 60 | 83 | Heating plate, facer, support, tool box |
| 3 | 850 × 750 × 850 | 85 | 125 | Hydraulic unit |
| Total | 1.629 CBM | 299 | 392 |
Quoted by configuration. Clamps, inserts, liners, voltage, heater, facer and accessories are confirmed per RFQ. Specifications subject to supplier confirmation.

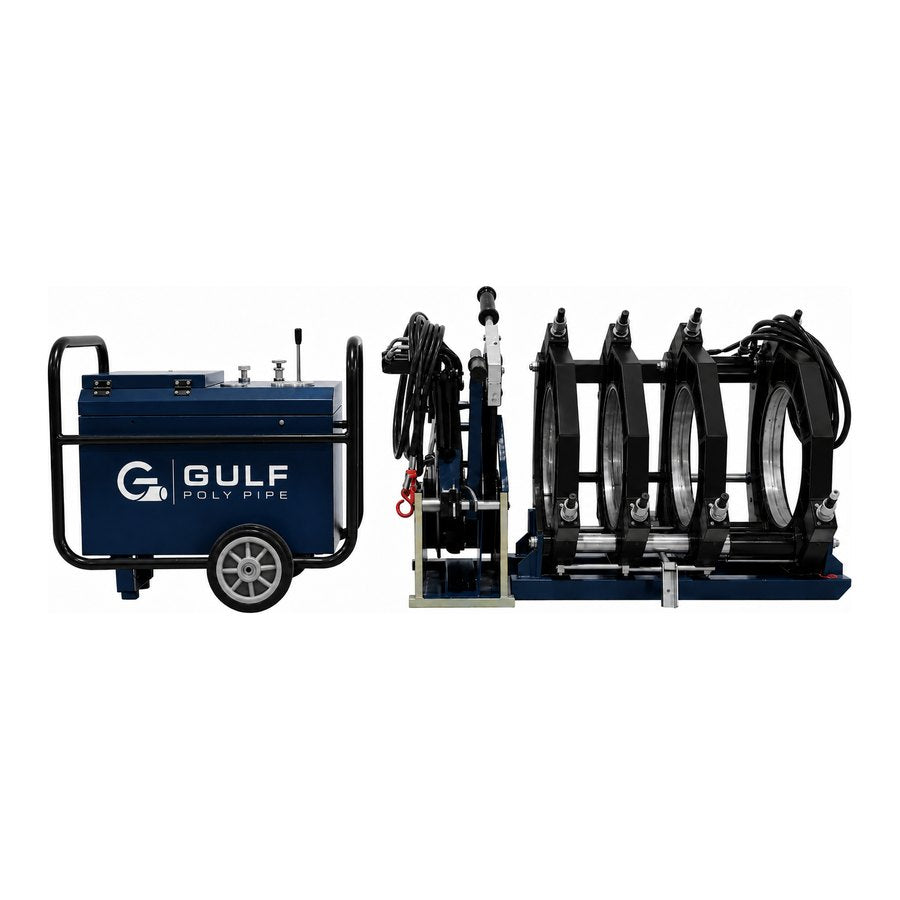

More in this series
