FORGE SERIES — MANUAL FIELD FUSION

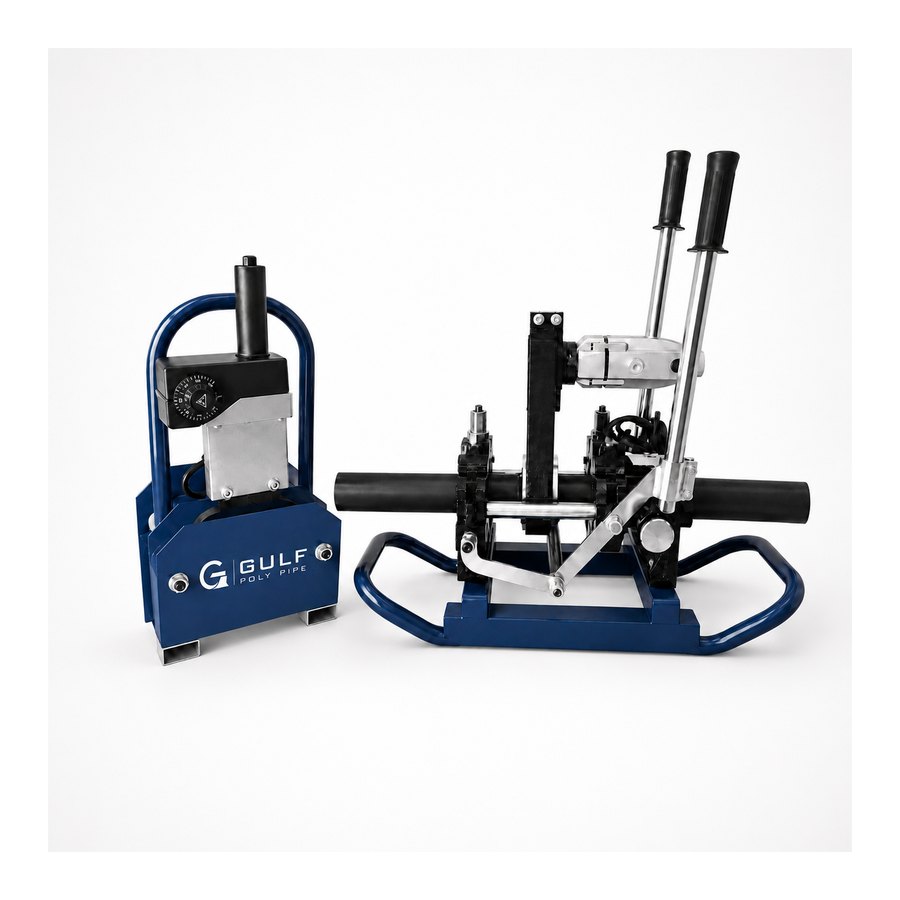

GPP Forge 14
Manual Butt Fusion Machine
- 1¼″ – 4″ IPS
Compact manual butt fusion machine for service lines, drops and small-diameter installations from 1¼″ to 4″. Lightweight frame, hand-lever carriage and an adjustable PTFE-coated heater make it a fast, dependable tool for tight work areas.
Technical specification
- Welding range: 1¼″ – 4″ plastic pipe (1¼″ · 1½″ · 2″ · 2½″ · 3″ · 4″)
- Range of application: PE, PP and PVDF
- Working voltage: 120V ±10%, 60 Hz
- Total power 1.4 kW — facer (planing tool) 0.7 kW, heating plate 0.7 kW
- PTFE-coated heating plate with adjustable temperature control knob
- Surface temperature difference ≤ ±3° · handy operation
- Operating environment: -10° to 45°
- Machine consists of basic frame, heating plate, facer and support for facer & heating plate
Standard composition
- Machine body
- Heating plate
- Facer
- Support stand
Packing & weights
Packing & weights
Per shipment| Item | Dimension with packing (mm) | N.W (kg) | G.W (kg) | Contents |
|---|---|---|---|---|
| 1 | 800 × 450 × 650 | 40 | 52 | Basic frame (liner 1¼″–3″), heating plate, support, facer, accessories |
| Total | 0.234 CBM | 40 | 52 |
Quoted by configuration. Clamps, inserts, liners, voltage, heater, facer and accessories are confirmed per RFQ. Specifications subject to supplier confirmation.

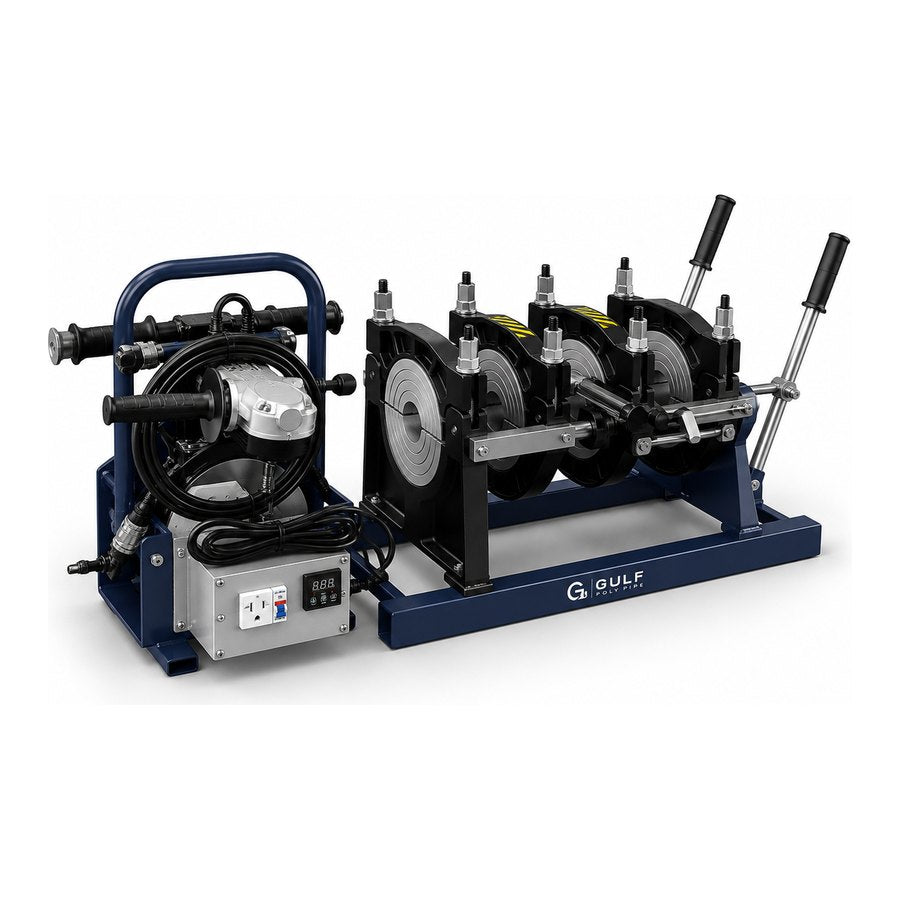

More in this series
