FORGE SERIES — MANUAL FIELD FUSION

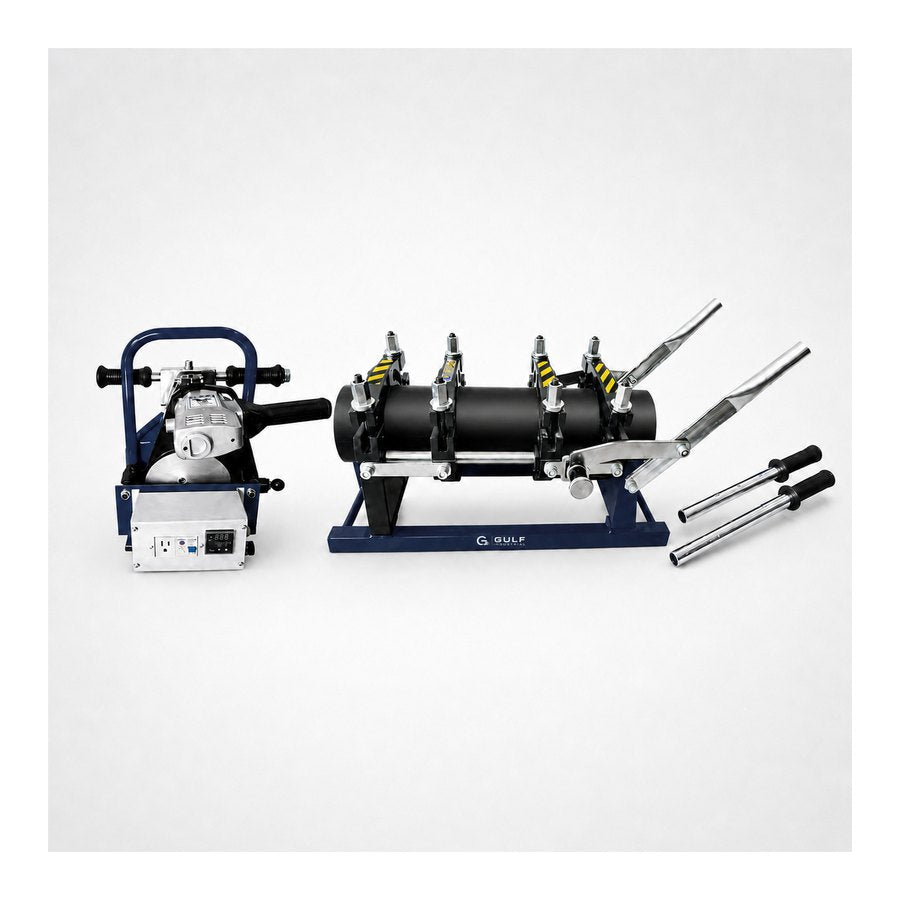

GPP Forge 26
Manual Butt Fusion Machine
- 2″ – 6″ IPS
Manual butt fusion machine for distribution and jobsite work from 2″ to 6″. A four-clamp carriage with removable heater and facer keeps alignment simple and fusion prep quick — easy to transport, stage and operate with a small crew.
Technical specification
- Welding range: 2″ – 6″ plastic pipe (2″ · 3″ · 4″ · 5″ · 6″)
- Range of application: PE, PP and PVDF
- Working voltage: 120V ±10%, 60 Hz
- Total power 1.7 kW — facer (planing tool) 0.7 kW, heating plate 1.0 kW
- PTFE-coated heating plate with adjustable temperature control knob
- Surface temperature difference ≤ ±3° · handy operation
- Operating environment: -10° to 45°
- Machine consists of basic frame, heating plate, facer and support for facer & heating plate
Standard composition
- Machine body
- Heating plate
- Facer
- Support stand
Packing & weights
Packing & weights
Per shipment| Item | Dimension with packing (mm) | N.W (kg) | G.W (kg) | Contents |
|---|---|---|---|---|
| 1 | 820 × 520 × 520 | 48 | 64 | Basic frame (liner 2″–5″) |
| 2 | 470 × 420 × 620 | 20 | 29 | Heating plate, facer, support, attachments |
| Total | 0.344 CBM | 68 | 93 |
Quoted by configuration. Clamps, inserts, liners, voltage, heater, facer and accessories are confirmed per RFQ. Specifications subject to supplier confirmation.
